LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production

Brand Name : LeoTech

Model Number : LMW-5

Certification : CE

Place of Origin : China

MOQ : 1

Product Name : LMW-5 Fully Functional 5-Axis Wet&Dry Milling Machine

Number of axes : 5

Millable material : Zirconia/PMMA/Wax/Glass Ceramic/Ti/PEEK/Cocr

Processing method : Dry/Wet Milling

Dimension : 685×770×1700mm

Weight : 390kgs

Automatic tool change quantity : 27

X,Y, Z axis : 305×165×115mm

A,B axis : A：360° B:±30°

Power supply : Single-phase AC 220V 50/60Hz voltage

Speed : 60,000 rpm

Delivery Time : 5-8 work days

Payment Terms : T/T

Contact Now

LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production

Product Features
  • Renewal after power outage
  • Compatible with all mainstream Cam
  • High power spindle
  • Tool life monitoring
  • After-sales maintenance test board
Product Displays

LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production

Half-open blankholder (C-CLAMP)

LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production

Titanium holder

LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production

Glass ceramic holder

LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production

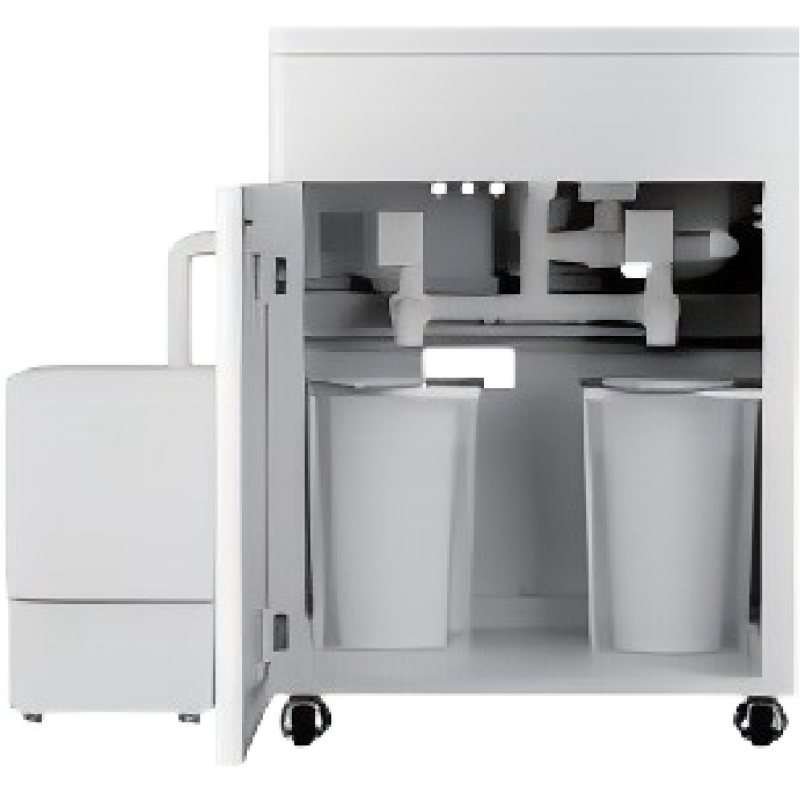

Dry&Wet Auto-Switching System

  1. Water chiller
  2. Milling fluid tan
  3. Wet & Dry convertible cleaning water tank
Details Displays

LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production

Industrial-grade automatic calibration (error±0.05mm)

LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production

High Power Spindle

LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production

90 Degree Processing

LMW-5 High-Efficiency 5-Axis Mill LMW-5 Enables Uninterrupted Wet and Dry Milling Production

Integrated Inneral Casting Long-term Accurate and Stable

Structure Parameter
Number of axes 5
Millable material Zirconia/PMMA/Wax/Glass Ceramic/Ti/PEEK/Cocr
Processing method Dry/Wet Milling
Dimension 685*770*1700mm
Weight 390kgs
Automatic tool change quantity 27
Input
Power supply Single-phase AC 220V 50/60Hz voltage
Power 3.7KW
Air supply pressure 6Bar
Spindle
Power AC 2.5 KW
Cooling method Water cooling
Speed 60,000 rpm
Collet Φ6 mm
Route
X,Y,Z axis 305*165*115mm
A,B axis A:360°
B:±30°
